U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO photo 1U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO photo 2U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO photo 3U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO photo 4U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO photo 5
1 / 5
US motors

U.S. Motors V11384 P63FRJ-1753 1.5/1.0HP 3PH 460V/380-415V 56Y TEAO

ConditionNew – Open box

Part numberV11384 P63FRJ-1753also V11384P63FRJ1753

In stock
$759.99

Free shipping · ships from Kansas City, MO

1

Finish the job

Often needed with it
Fein 63503063007 12" HSS Saw Blade
Fein 63503063007 12" HSS Saw Blade$28.49
Aquatherm 9800050642 Fusion Outlet Welding Head 4” x 1-1/2”
Aquatherm 9800050642 Fusion Outlet Welding Head 4” x 1-1/2”$297.34
McNeilus 1562424 Heavy Duty Die Spring 2” x 4” Lot of 4
McNeilus 1562424 Heavy Duty Die Spring 2” x 4” Lot of 4$189.99
This part + 3 more$1,275.81

Ships from Kansas City, MOUSPS, UPS or FedEx. Tracking sent by email.

30-day return windowIf it arrives defective, damaged or not as listed.

Not sure it fits?Call or text 813-260-8356 with your VIN or old part number.

Direct priceYou buy from us, with no marketplace fees in the middle.

Specifications
BrandUS motors
Part numberV11384 P63FRJ-1753
ConditionOpen box
CategoryMore parts
MachineIndustrial
ModelV11384 P63FRJ-1753
Item #158275330928
About this part

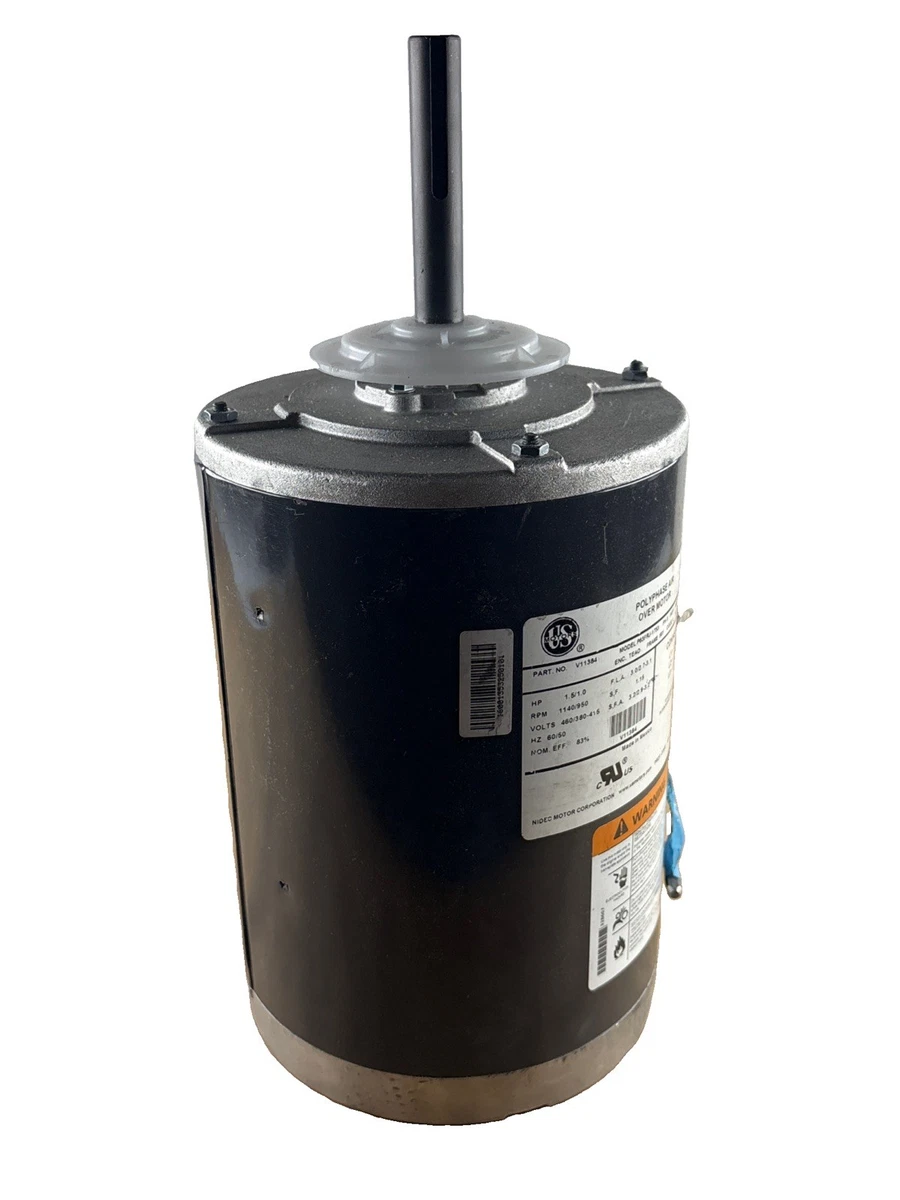

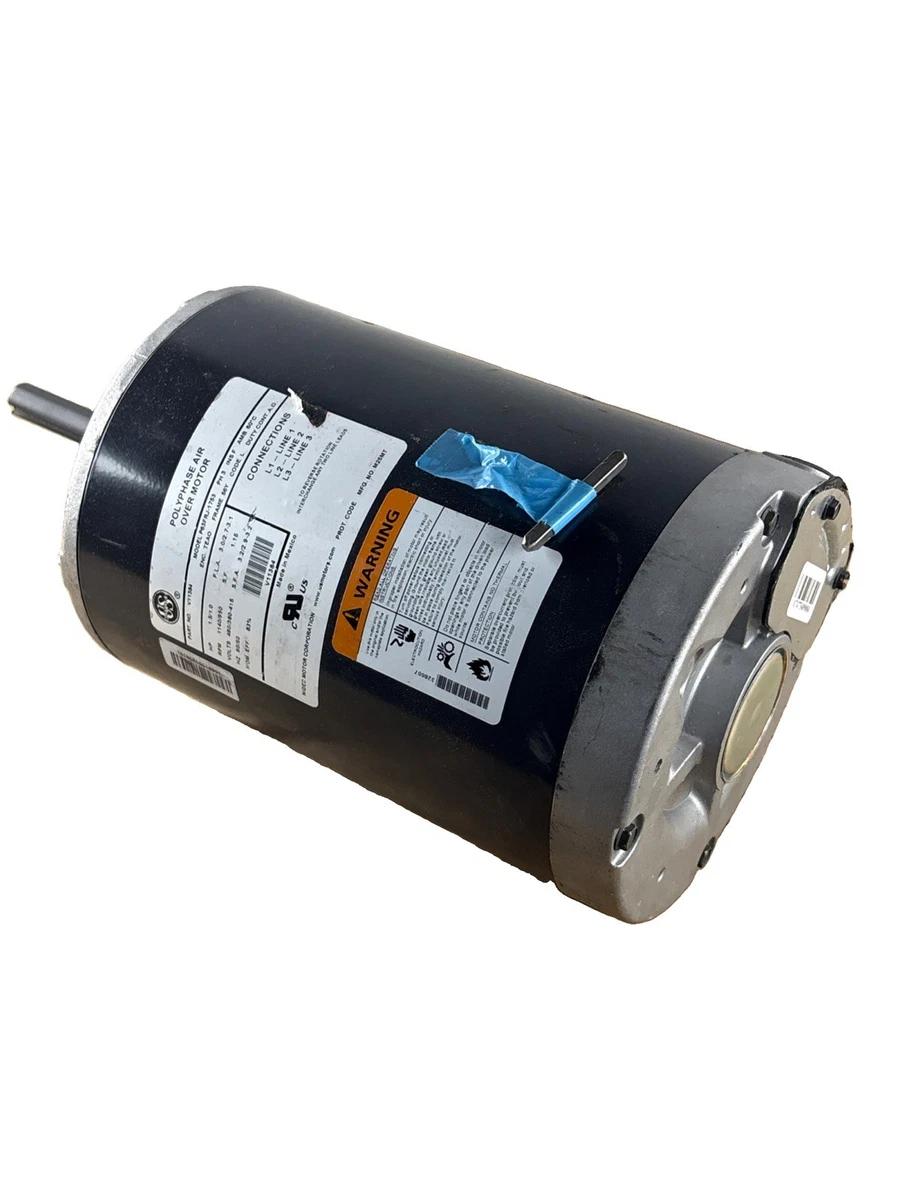

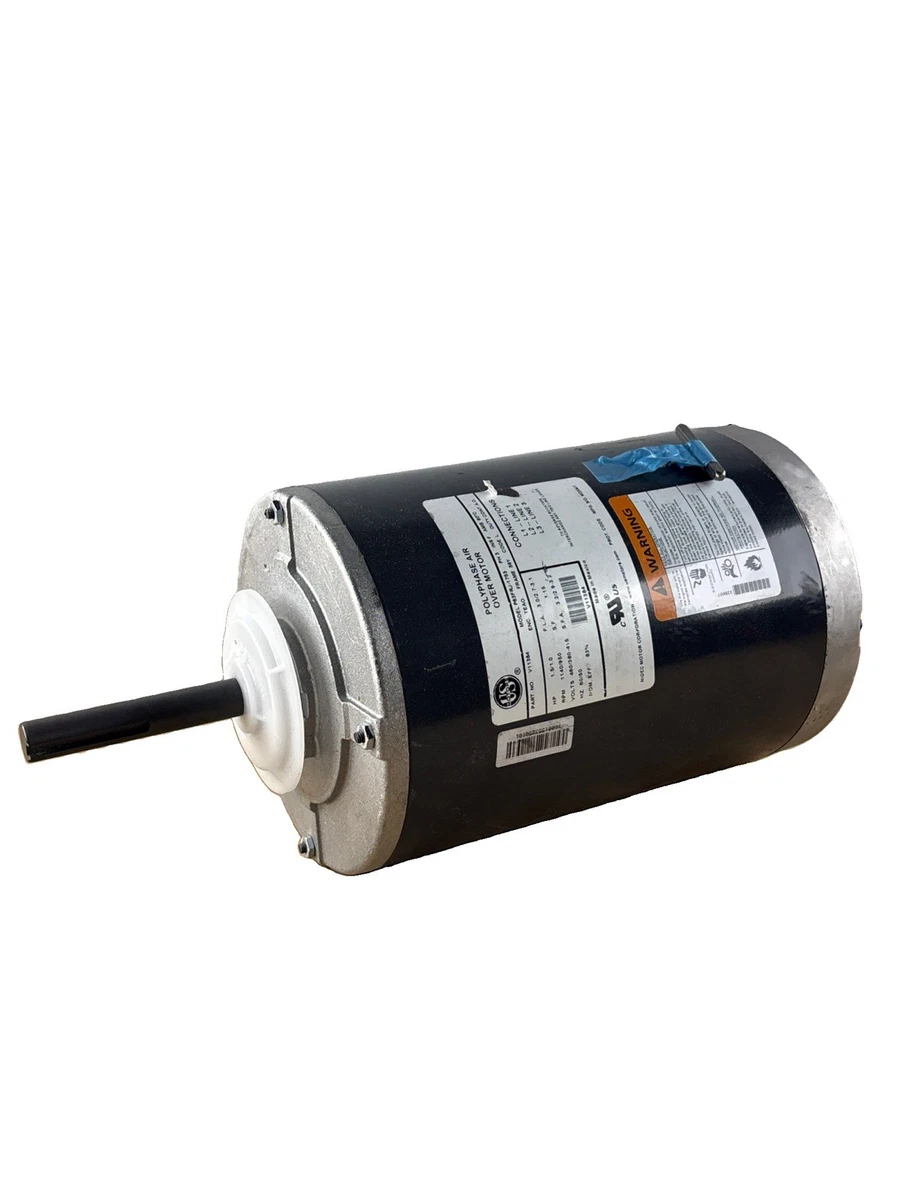

U.S. Motors / Nidec Motor Corporation Polyphase Air Over Motor. RPM:1140-950 Part No.: V11384 Model: P63FRJ-1753 HP: 1.5/1.0 RPM: 1140/950 Voltage: 460/380-415V Frequency: 60/50 Hz Phase: 3 Phase Frame: 56Y Enclosure: TEAO Ambient: 60°C Service Factor: 1.15 F.L.A.: 3.0/2.7-3.1 S.F.A.: 3.2/2.9-3.2 Nominal Efficiency: 83% Made in Mexico Motor is sold exactly as shown in the photos. Please verify all specifications and compatibility with your application before purchasing.

The US Motors V11384 P63FRJ-1753 is a three-phase air over motor, 1.5/1.0 HP at 1140/950 RPM, 460/380-415V and 60/50 Hz, in a 56Y frame with a TEAO enclosure. TEAO motors are cooled by the airflow from the fan they drive, so they are meant for fan duty. Service factor is 1.15, and the motor is rated for a 60°C ambient.

Before you order: match model P63FRJ-1753, the 56Y frame and voltage with your fan and power supply. Made in Mexico.

New, open box, never installed. Ships from Kansas City, MO with tracking.

Shipping & returns

Orders ship from Kansas City, MO with USPS, UPS or FedEx. Shipping on this part is free. You get the tracking number by email as soon as it ships.

We accept returns for items that arrive defective, damaged or incorrect. Contact us within 30 days of delivery at shopmxlparts@gmail.com with your order number and photos. Full return policy
